Introduction

OptoSIGN™ Signal Conditioning Modules (SCM) are used for interfacing different sub systems to data acquisition & control system providing optical isolation. It also reduces EMI Interferences i.e. provides minimal emission & better immunity from conductive or radiative coupling.  OptoSIGN™ has generic specification to match various applications. Details are provided in the attached technical brochure and technology leaflets.

Feedback controlled modular High Voltage DC Power
Supply (FCM-HVPS)

Introduction

OptoSIGN™ Signal Conditioning Modules (SCM) are used for interfacing different sub systems to data acquisition & control system providing optical isolation. It also reduces EMI Interferences i.e. provides minimal emission & better immunity from conductive or radiative coupling.  OptoSIGN™ has generic specification to match various applications. Details are provided in the attached technical brochure and technology leaflets.



Description of the Technology

Signal Conditioning Modules (SCM) are used for interfacing different sub systems to data acquisition & control system providing
optical isolation. It also reduces EMI Interferences i.e. provides minimal emission & better immunity from conductive or radiative
coupling.  SCMs having generic specification to match various similar application.

These SCMs are compatible with POF (Plastic Optic Fiber)/HCS (Hard core silica) cable. Input & output interface are from front
however these modules gets biasing voltage from backplane of Modules. It is tested up to 75meter length of POF cable. It includes
three types of SCMs:
Fast Analog Tx-Rx Module (FA)
Normal Analog Tx-Rx Module (NA)
Digital Tx-Rx Module (DTR)

Selection of voltage level of TTL/24V for Input & output signals is available for DTR module with inverting & non-inverting configuration.
FA and NA modules input and output voltage level is 0-10V. All modules are interchangeable with respect to position.

These SCMs are CE certified against EMC directive (IEC 61000-6-2, IEC 61000-6-4, IEC 61000-4-16 & IEC 61000-4-18), LV
directive (IEC 62368-1:2018), RoHS directive and Environmental standards. Functional testing of all SCMs are completed at ICRH,
ITER-India, IPR lab and ready to interface with experiment facility.

APPLICATIONS


It can be used to interface between sub systems with high probability of EMI interference like, High Voltage Power Supply, High Power
RF amplifiers, Gyrotron Systems, Klystron Systems, Electron Beam Systems, Particle accelerator Systems etc.


TECHNICAL SPECIFICATION OF OptoSIGN™

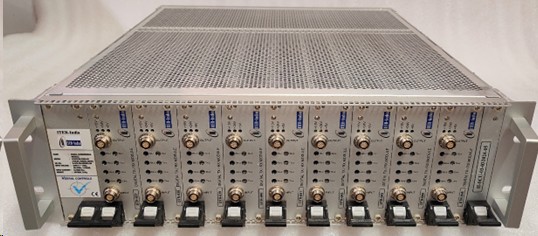

1.SCM Chassis:
Chassis Dimension:  3U, 19” Rack mountable, Depth: 482 mm
Model No. :
(i) II-SCU:3U:2206-02/FAM:09,NAM:00,DM:00
(ii) II-SCU:3U:2206-01/FAM:00,NAM:09,DM:00
(iii) II-SCU:3U:2206-03/FAM:00,NAM:00,DM:09
Weight : ~9kg
AC Input Voltage : 230V AC/50Hz
AC Input Current : Max. 1.5A

2. SCM Backplane:
Board size : L: 435mm, H: 55mm
Modules : 9 nos. of any type of SCM

3. Fast Analog Tx-Rx Module:
Tx/Board :  Input: 2 channel/0-10V; Output: 2 optical Tx (1.2MHz-3.5MHz)
Rx/Board : Input: 2 optical Rx (1.2MHz-3.5MHz); Output: 2 channel/0-10V
Board Size : H:133.35mm(3U), W:40.30mm (9T), D:280mm
Frequency Response : 3-dB BW >200kHz
Response Time : Less than 5µs
Linearity : Better than 0.1%
Resolution : 1mV
Ripple : Less than 10mVp-p at full scale
Module/Chassis : 9 Nos.
Signal I/P & O/P Connector Type : 4 pin Lemo-connector

4. Normal Analog Tx-Rx Module:
Tx/Board :  Input: 2 channel/0-10V; Output: 2 optical Tx (1.0MHz-2.0MHz)
Rx/Board : Input: 2 optical Rx (1.0MHz-2.0MHz); Output: 2 channel/0-10V
Board Size : H:133.35mm(3U), W:40.30mm (9T), D:280mm
Frequency Response : 3-dB BW >5kHz
Response Time : Less than 100µs
Linearity : Better than 0.1%
Resolution : 1mV
Ripple : Less than 10mVp-p at full scale
Module/Chassis : 9 Nos.
Signal I/P & O/P Connector Type :4 pin Lemo-connector

5. Digital Tx-Rx Module:
Tx/Board :  Input: 4 channel/TTL(0-5V) or 0-24V; Output: 4 optical Tx
Rx/Board : Input: 4 optical Rx ; Output: 4 channel/TTL(0-5V) or 0-24V
Board Size : H:133.35mm(3U), W:40.30mm (9T), D:280mm
Logic Level : Inverting/Non-Inverting selectable through DIP switch
Response Time : Less than 400ns for TTL
Module/Chassis : 9 Nos.
Signal I/P & O/P Connector Type : 8 pin Lemo-connector


INFRASTRUCTURE REQUIRED

PCB Fabrication
SMD and through hole component soldering and de-soldering facility
SMD component mounting facility
Functional testing facility and required equipment i.e. Function Generator, Oscilloscope, Calibrator, Multimeter etc.

MAJOR COMPONENTS OF SCM


Major components include, passive components (resistors, capacitors, inductors etc..), active components (OP-AMP ICs, Transistors etc.), SMPS, EMI filter, MOV, 3U chassis with facia. These components are easily available in Indian market with IEC standards &
RoHS compliance.

HUMAN RESOURCE REQUIRED


One Electronics/I&C/EC engineer
One electronics/EC/I&C technical assistant

For details contact:


Head, Projects & Technology Transfer Section,
INSTITUTE FOR PLASMA RESEARCH
Nr. Indira Bridge, Bhat
Gandhinagar 382 428.
e-mail: technology@ipr.res.in
